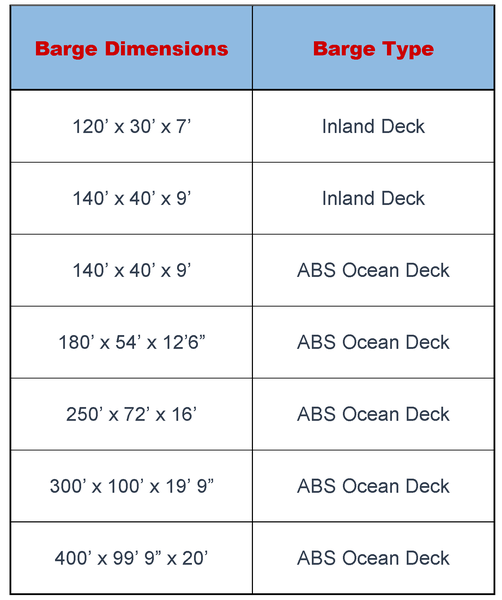

BARGE TYPES AVAILABLE
DECK • SPUD • SHALE
LIQUID MUD • HOPPER
120' x 30' x 7' STANDARD DECK BARGE
SPECIFICATIONS
Barge Description
•Length Overall....................119'-0"
•Breadth................................30'-0"
•Depth...................................6'-11"
•Box/Rake Barge
•One (1) Longitudinal Bulkhead
•Three (3) Transverse Bulkheads
Classification
•None
Scantling and Plate Sizes
•Deck Plate......................................3/8"
•Side Plate.......................................3/8"
•Bottom Plate...................................3/8"
•Headlog..........................................1/2"
•Transom..........................................9/16"
•Bulkheads.......................................1/4"
•Deck Longitudinals..........................5"x3"x5/16" angle
•Side Longitudinals...........................5"x3"x5/16" angle
•Bottom Longitudinals.......................5"x3"x5/16" angle
•Deck Transverse Girder..................C 10"x15.3#/ft channel
•Side Transverse Girder...................C 10"x15.3#/ft channel
•Bottom Transverse Girder...............C 10"x15.3#/ft channel
•Vertical Stanchions..........................4"x4"x5/16" angle
•Diagonal Stanchions........................3"x3"x5/16" angle
•Transverse Bulkhead Stiffeners.......3"x3"x5/16" angle
•Longitudinal Bulkhead Stiffeners......3"x3"x5/16" angle
*Additional scantling information will be shown on the contract drawings.
Deck Fittings
•Four (4) 8" Double Bitts
•Four (4) 36" Kevels
•Six (6) 18" Diameter Flush-Mounted Single Bolt Manholes
•Six (6) Vertical Access Ladders, I.W.O. Manholes
